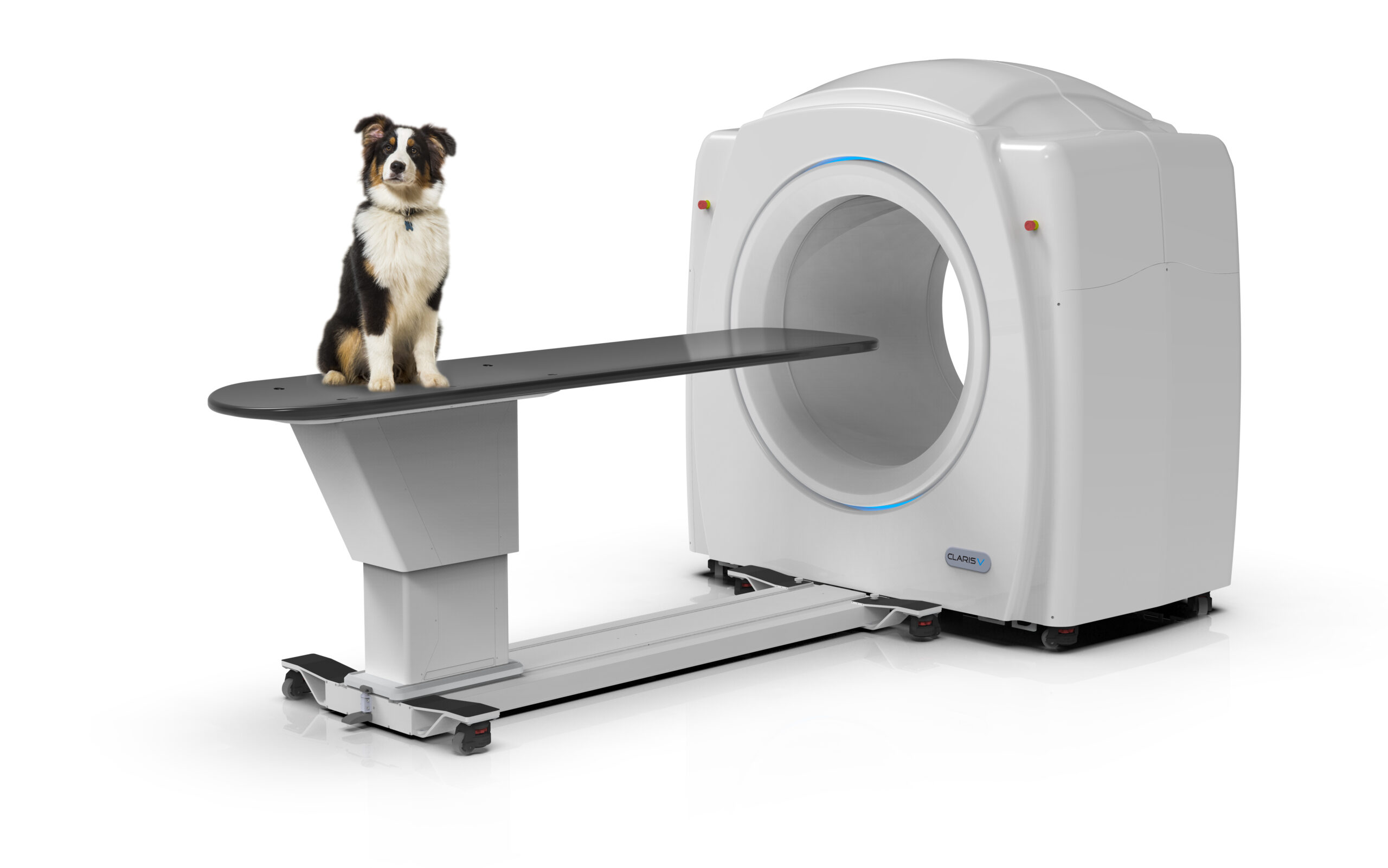

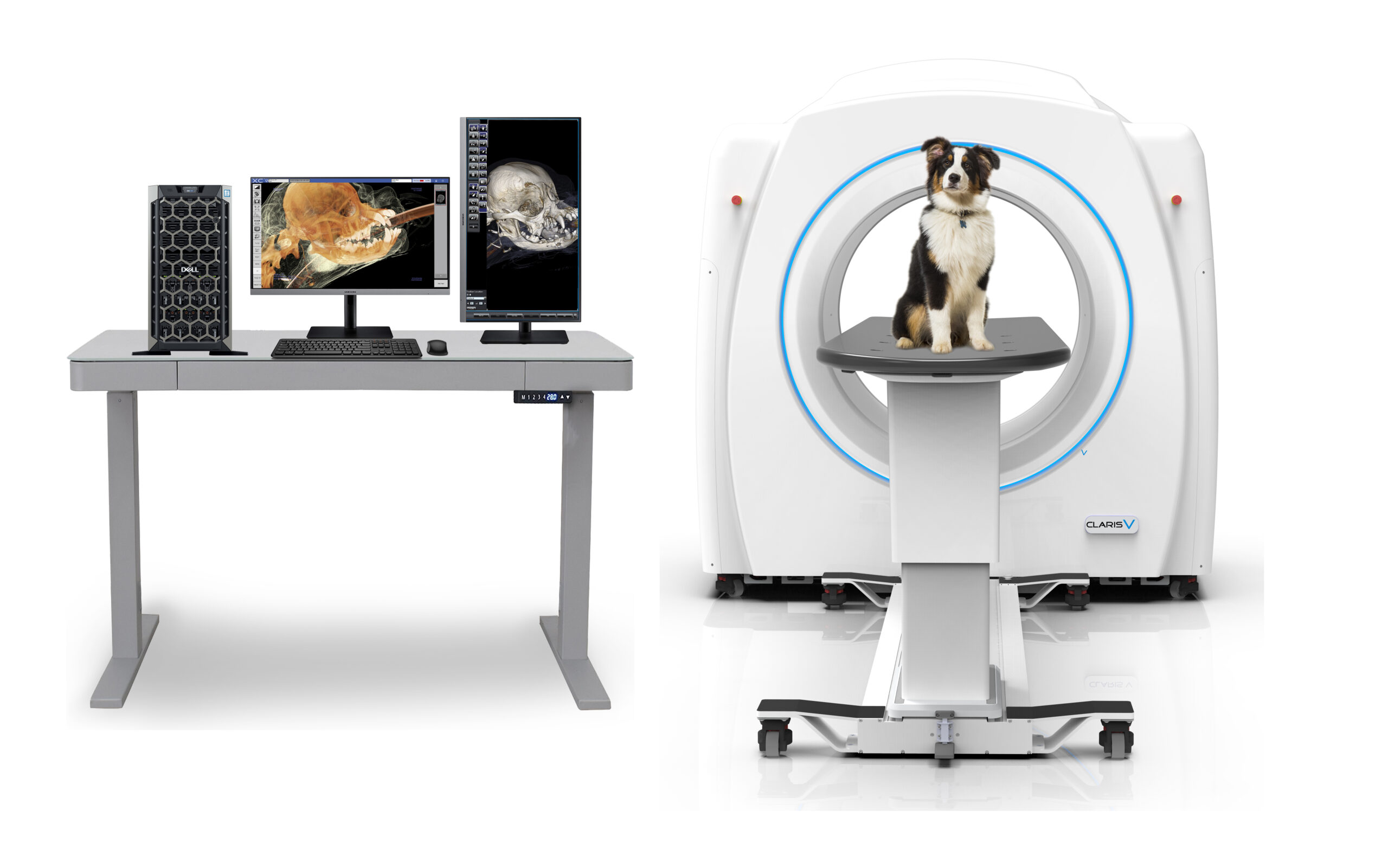

Claris V transforms any exam room into a point-of-care imaging station without the need for permanent installation, construction costs, or special shielding. Both the mobile gantry and table are mounted on wheels and can be securely locked together, ensuring flexibility and ease of use throughout your clinic. Its large open gantry design features customizable bore sizes of 71 cm or 79 cm and powerful X-ray tube options (5kW or 18kW). With a 43 x 43 cm field of view, Claris V offers exceptional adaptability for imaging a wide range of anatomy.

Dental and Oral Imaging: Ideal for diagnosing tooth root infections, dental fractures, and oral tumors, providing precise 3D visualization for surgical planning.

Orthopedic Imaging: Accurately assess fractures, joint diseases, and skeletal deformities to guide treatment, including orthopedic surgeries.

Nasal and Sinus Evaluations: Detect nasal masses, foreign bodies, and structural abnormalities causing respiratory issues.

Pre-Operative Planning: Perform detailed 3D visualizations for complex surgeries to improve outcomes and reduce risks

Claris V offers three diagnostic modes in one system: X-ray, high-resolution CBCT, and dynamic fluoroscopy. With a wide 430 mm x 430 mm field of view and 16-bit cesium detectors, the system produces ultra-low dose imaging with remarkable detail, including a 140-micron pixel pitch and an 85-micron voxel pitch. The gantry rotates around the area of interest, capturing thin axial slices between 0.1 mm and 0.4 mm, enabling detailed visualization of small anatomical structures with unmatched clarity.

Compact, mobile, and loaded with advanced features, Claris V is the ultimate imaging solution for dental, orthopedic,and surgical veterinary applications. Designed to elevate your practice, it delivers the power of 3DCT, X-ray, and fluoroscopy in one cost-effective and versatile system.
